Description
SOLD

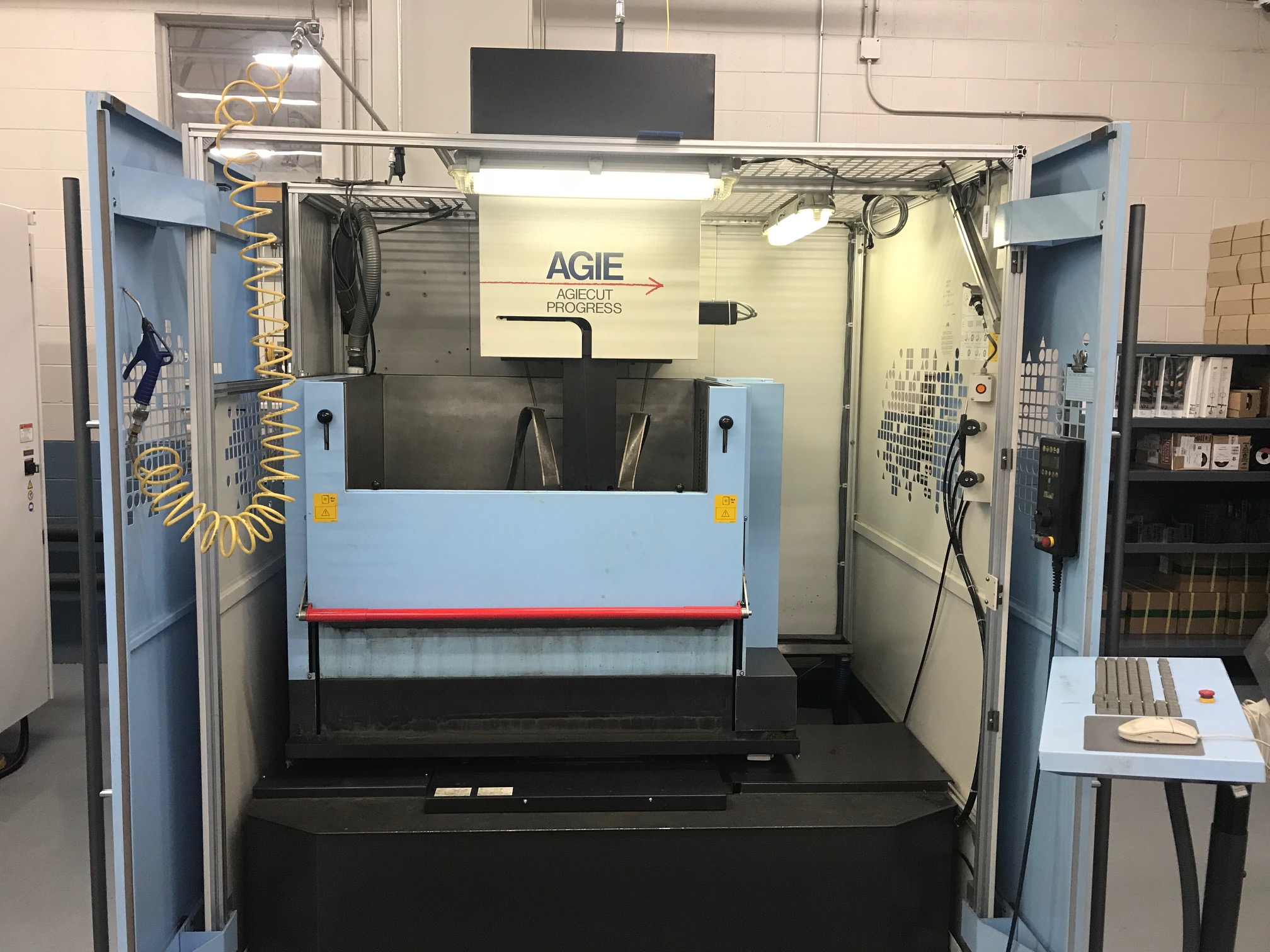

2004 Agie Progress 3
| Maximum Workpiece Dimensions | 41.3″ x 25.6″ x 16.5″ |
| Maximum Workpiece Weight | 880 lbs. (Submerged) |
| Machining Stroke ( X x Y x Z ) | 19.77″ x 13.77″ x 16.8″ |
| Machining Stroke ( UV) | plus/- 2.75″ |
| Max Taper Capacity | 30 deg @ 3.93″ |
| Wire Diameter Capabilities | 0.006″ – 0.013″ |
| Wire Spool Size | Up To 55 lbs. |
| AGIEjet Thread Height | 16.5″ Max |
| Dielectric Tank Capacity | 264 Gal |
| Filter System | 4 Canisters/8 Cartridge Filter |
| Power Requirement | 440v, 3 Ph / 60HZ, 9.1 kva |
| Floorspace Required | 110″ x 94.4″ |
| Machine Dimensions | 76.4″ x 90.5″ x 87.4″ |
| Machine Weight | 7,628 lbs. |

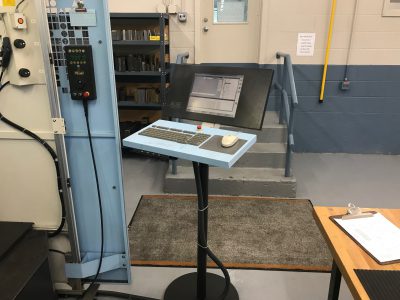

| AGIE Vision CNC Controller | |
| Full Submerged Machining | |
| IPG high Speed Generator | |
| AGIEjet Auto Wire Threader | |
| AGIE 3D Set-Up | |
| AGIE Jogger Remote Pendant w/LED Display | |

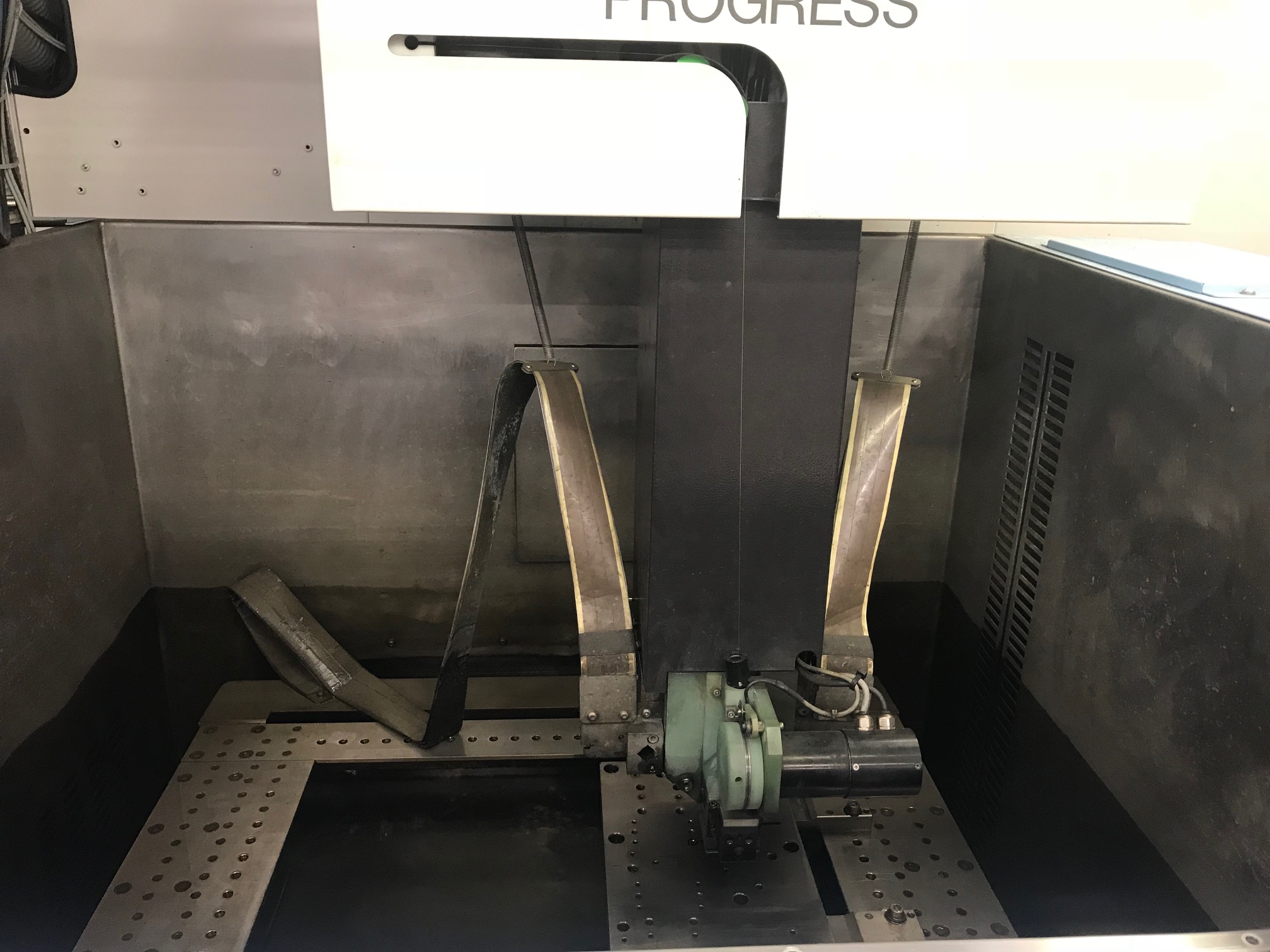

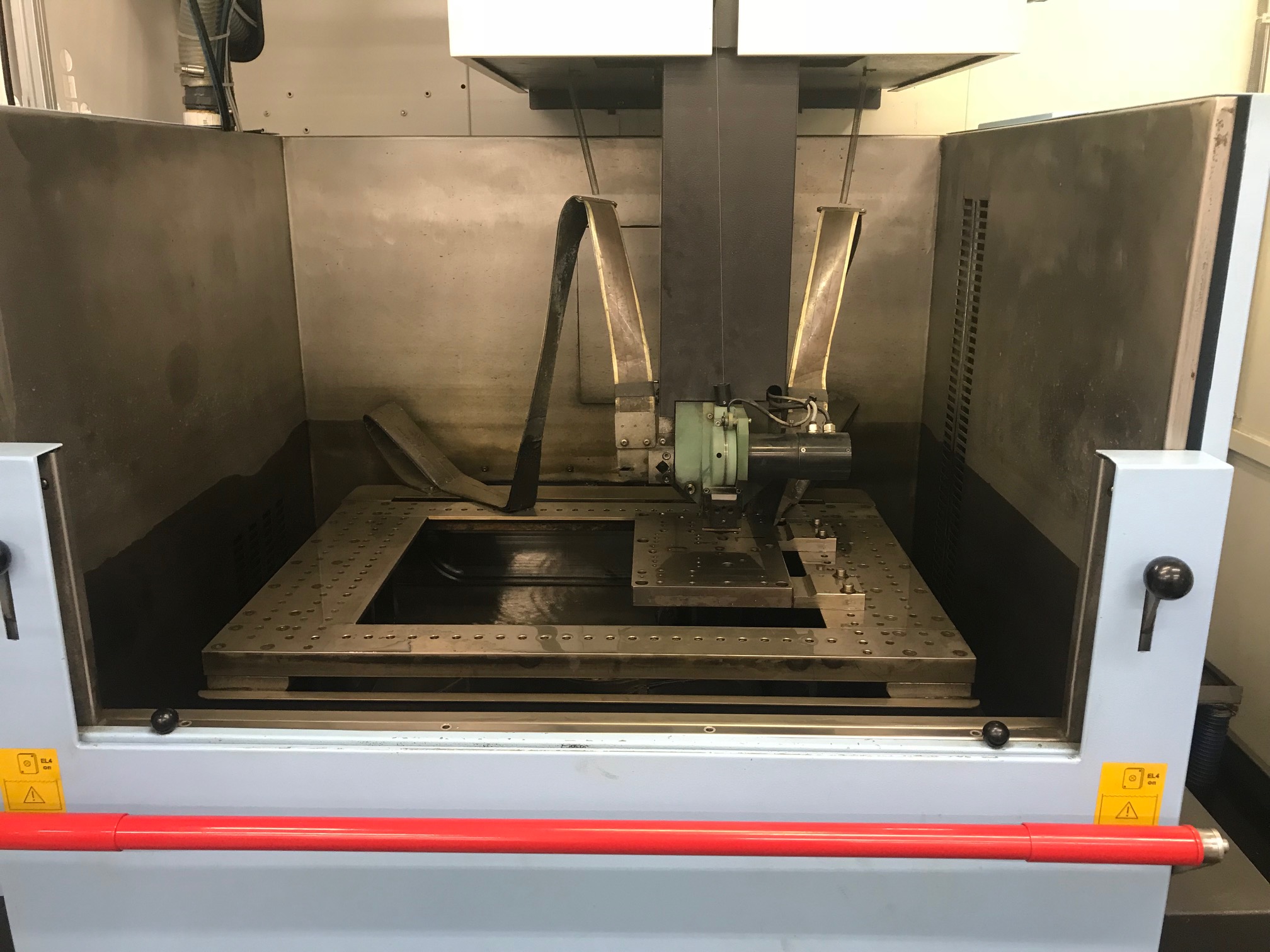

| Four Sided Table | |

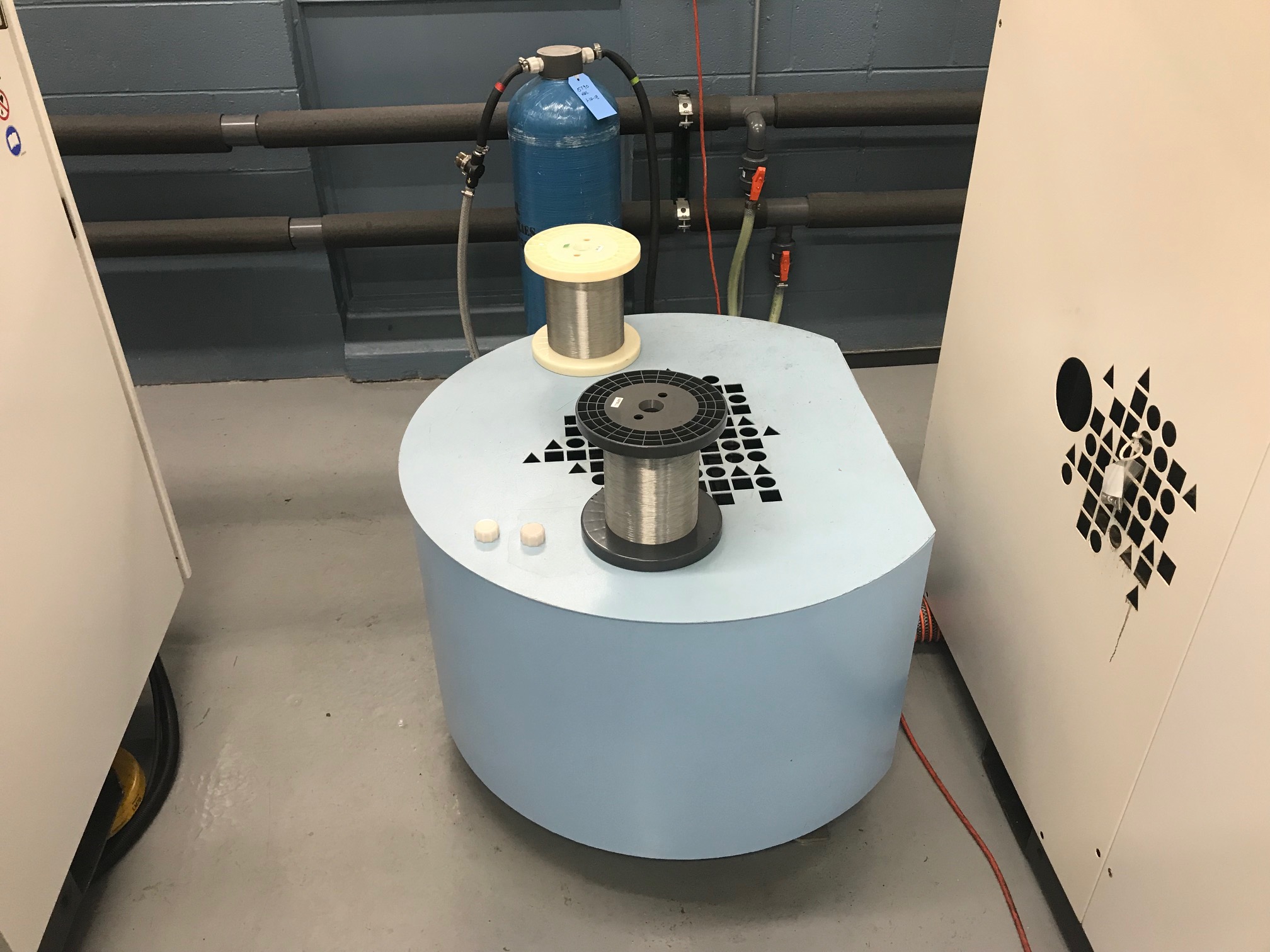

| 55LB Wire Spool Capacity | |
| Integrated Scrap Wire Chopper and Transformer | |
| “V” Toroid Guides |
